I am always making tools to make my job/life easier. I designed these two tools to replace some worn ones I’d made years ago and after a couple of months of using and refining them I thought I would share them with the world.

They are simple but effective tools to help in aligning critical parts when assembling machines during the tuning or building processes. They not strictly “ necessary” when assembling machines but are highly recommended for repeatability and accuracy, taking the guess work out of springing and tuning.

The Spring Alignment Tool is used for centring springs on the armature bar when detached from the machine.

The Armature Bar Alignment Tool is used for centring the armature bar on the machine when reassembling and can also be used as a general purpose handle/grip when performing cleaning and maintenance operations.

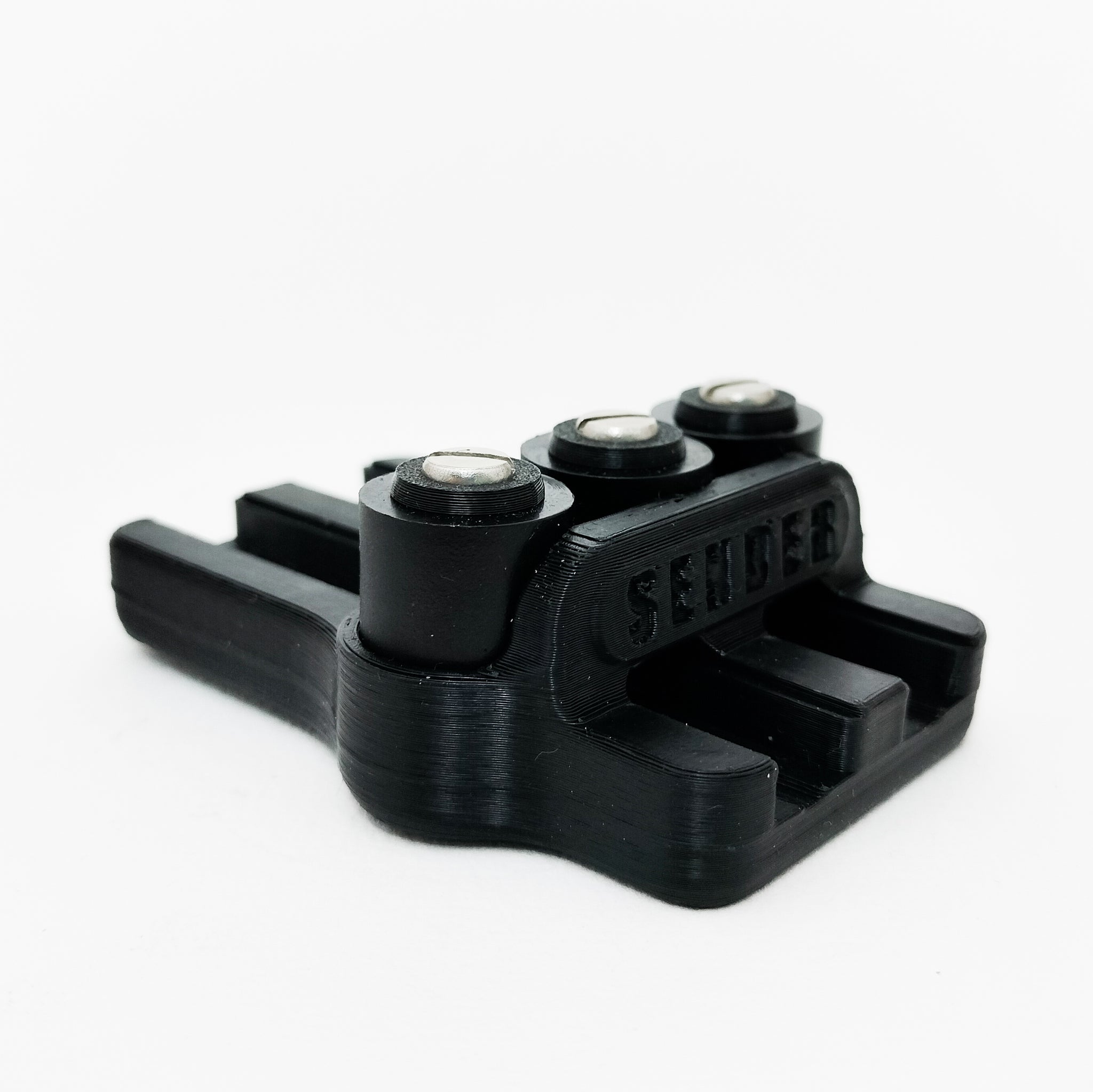

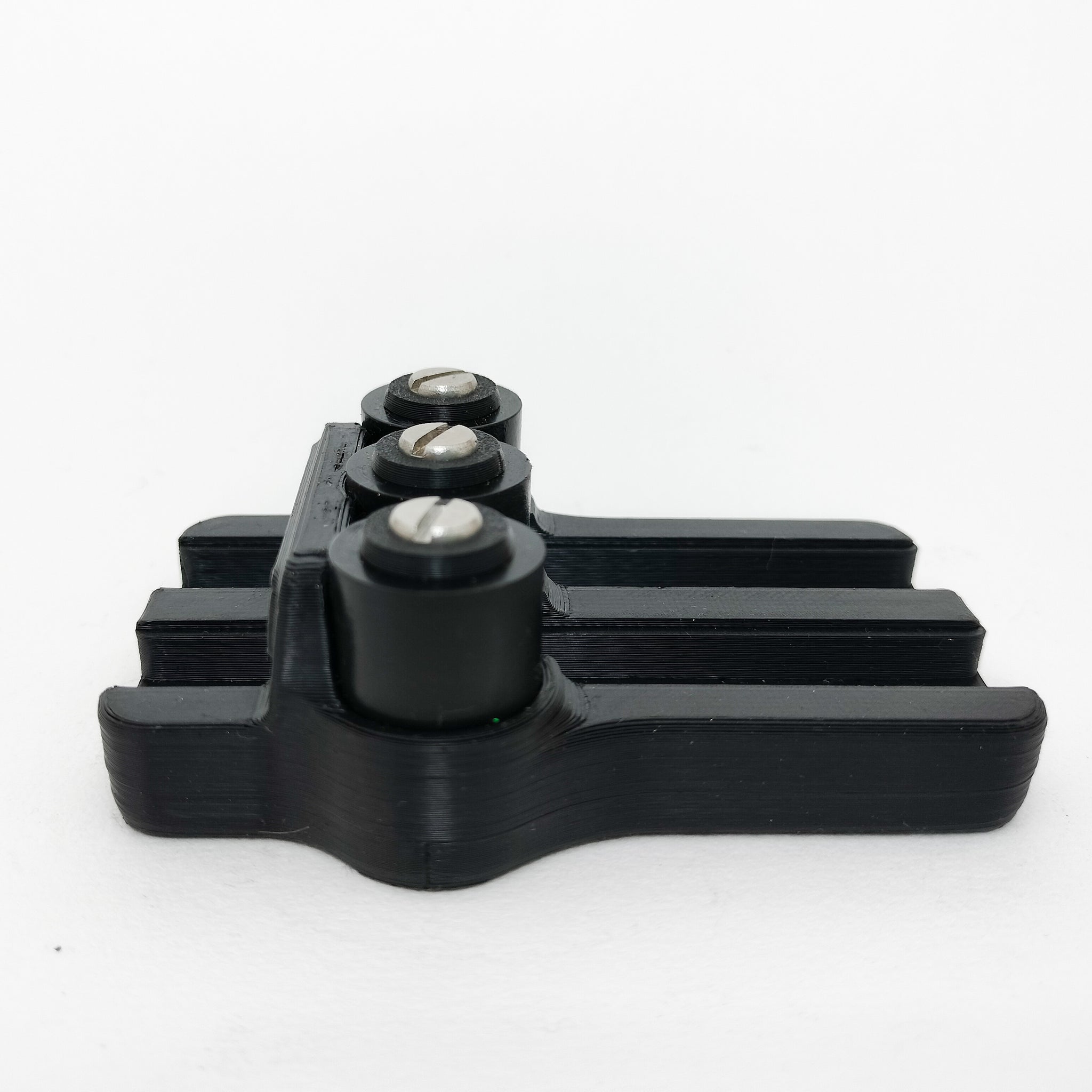

The Spring Alignment Tool features:

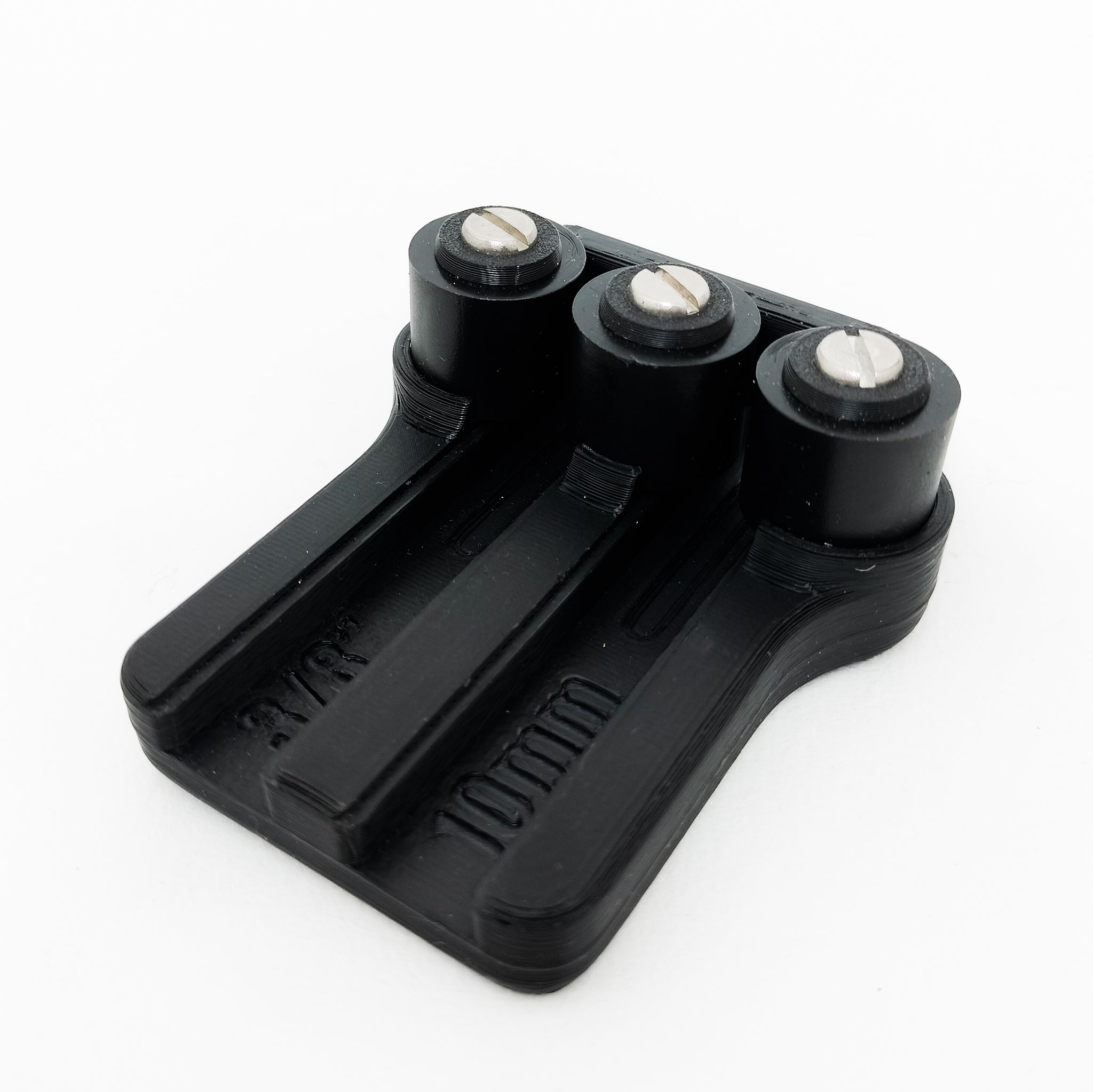

  • Two A-bar slots for 3/8” and 10mm armature bars.
  • Guides for aligning 1/2” rear springs
  • Tough and wear resistant nylon front spring aligning posts which can be rotated or replaced when worn.
  • A rugged and compact body 3D printed in tough and UV resistant ASA polymer.

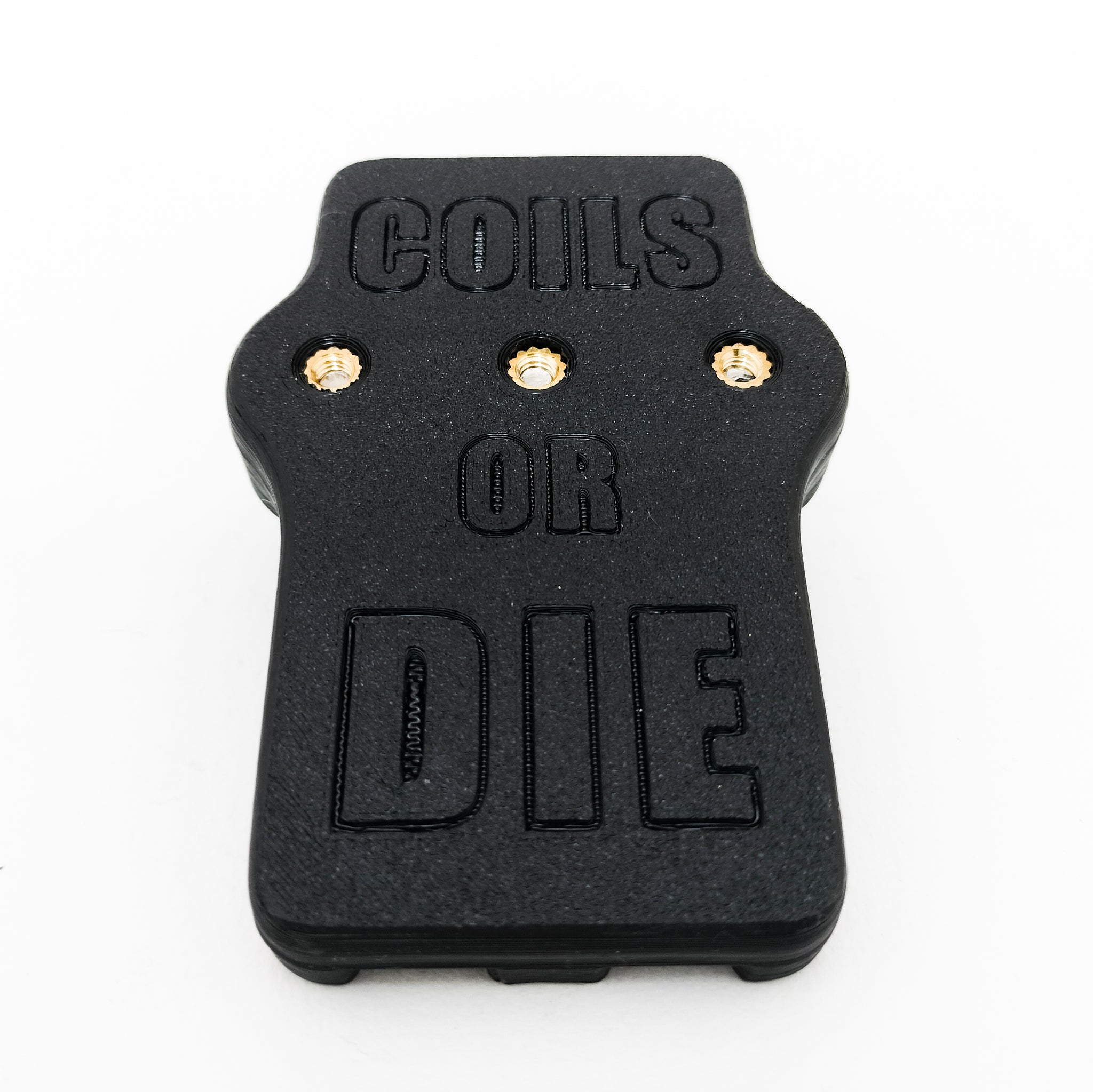

  • High quality brass threaded heat inserts
  • #8-32x1” screws for attaching alignment posts

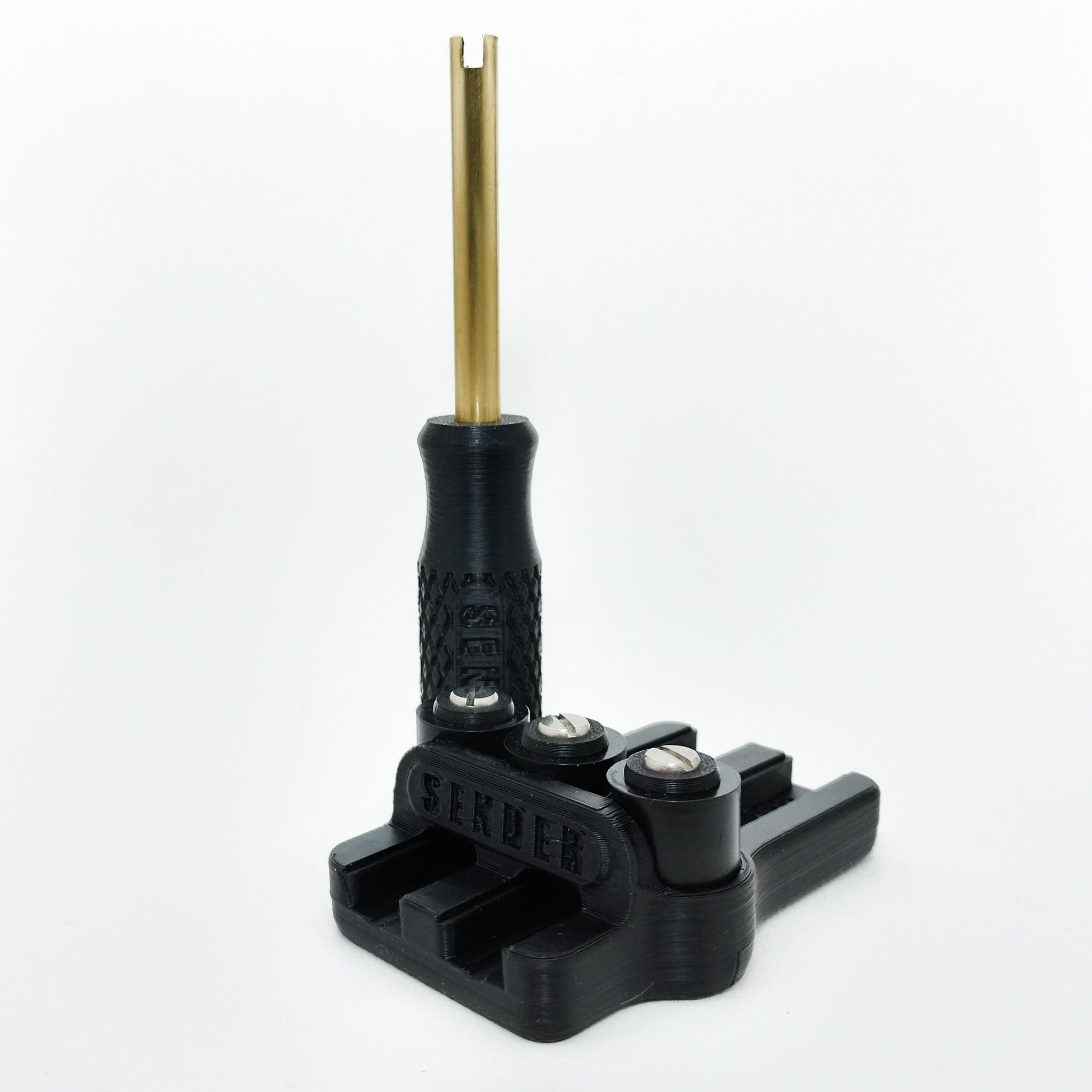

The Armature Bar Alignment Tool features:

  • A 5/16” brass shank with a central 1/8” slot for locating the armature bar nipple
  • A machined seat for accurate longitudinal alignment.
  • The ability to replace the shank if damaged or worn.
  • A tough ASA, 3D printed handle with knurled pattern for extra grip
  • High quality threaded heat insert and #6-32 set screw.

These would be a great addition to any tattooer’s or machine builder’s tool kit and will stand up to years of constant use.
